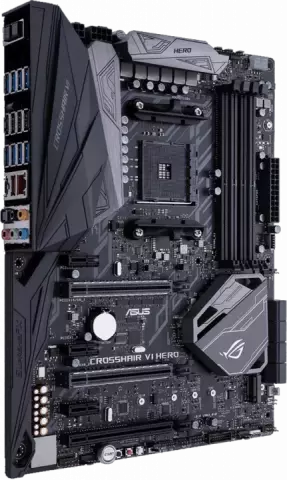

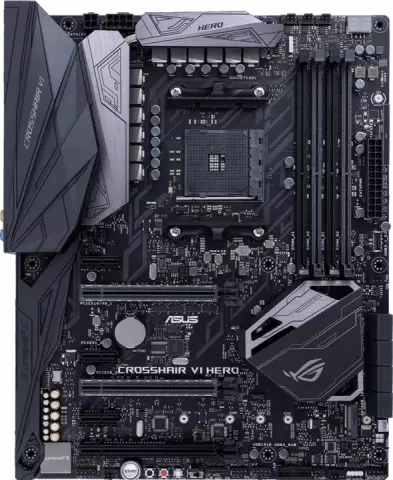

مادربرد Asus DDR4 مدل ROG CROSSHAIR VI HERO

AM4

AMD X370

AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores Supports AM4 Socket 14 nm CPU

DDR4

AMD Ryzen™ Processors : 3200(O.C.)/2666/2400/2133 MHz AMD 7th Generation A-series/Athlon™ Processors : 2400/2133 MHz

Dual Channel Memory Architecture Non-ECC

Un-buffered Memory

Supports NVIDIA® 2-Way SLI™ Technology *3

Supports AMD CrossFireX™ Technology

AMD Ryzen™ Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices sup

Support Raid 0

1

10

Intel® I211-AT

1 x Gigabit LAN Controller(s)

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

AMD Ryzen™ Processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1

1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x USB 3.1 Gen 2 (red)Type-A 8 x USB 3.1 Gen 1 (blue) 1 x M.2 Wi-Fi Slot

ATX

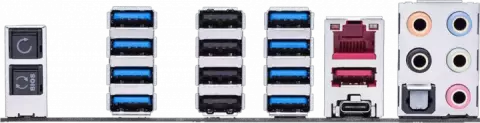

AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.0 port(s) (4 at back panel

blue) AMD X370 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) AMD X370 chipset : 6 x USB 3.0 port(s) (4 at back panel

blue

2 at mid-board) AMD X370 chipset : 6 x USB 2.0 port(s) (4 at back panel

black

2 at mid-board) ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel

black+red

Type-A + USB Type-CTM)

2 x RGB Header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 8-pin EATX 12 V Power connector 1 x 4-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 2 x 3D Mount screw port(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App TPU - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - SafeSlot ASUS Exclusive Features : - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector
