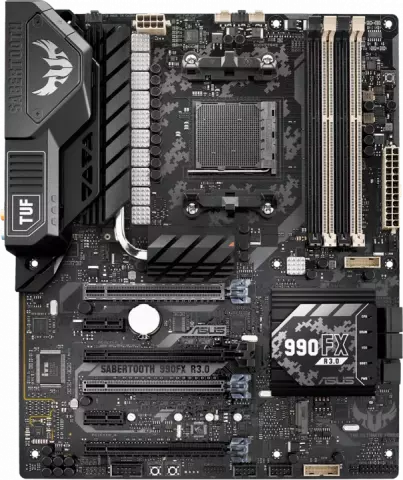

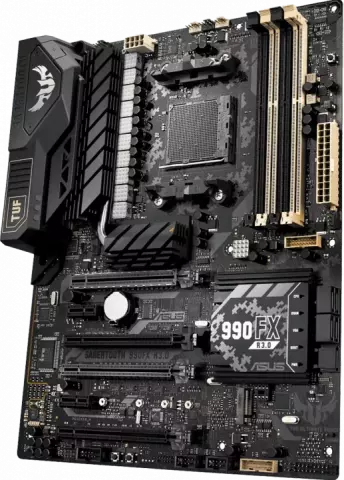

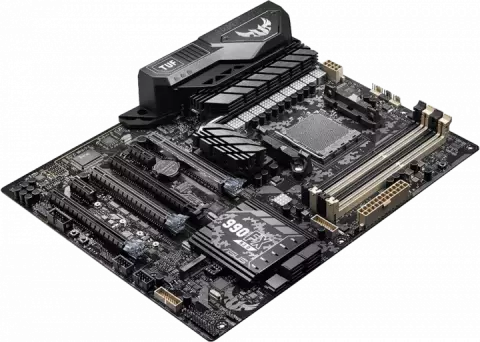

مادربرد Asus DDR3 مدل TUF SABERTOOTH 990FX R3.0

AM3+

AMD 990FX/SB950

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors - Supports AM3+ 32 nm CPU - Supports CPU up to 8 cores - Supports CPU up to 220 W - AMD Cool 'n' Quiet™ Technology

DDR3

1866/1600/1333/1066 MHz

ECC

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

Supports NVIDIA® 3-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Technology

1 x M.2 Socket 3

gray

with M Key

type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)

Support Raid 0

1

5

10

JBOD

Intel® I211

1 x Gigabit LAN Controller(s)

Realtek® ALC1150 8-Channel High Definition Audio CODEC

3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1

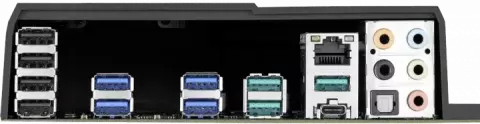

4 x USB 3.1 Gen 1 (blue)

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin

beige) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB BIOS Flashback button(s)

1 x M.2 Socket 3 with M Key design

type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x TPM connector(s) 1 x COM port(s) connector(s) 5 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin)

TUF ENGINE! Power Design : - 8 +2 Digital Phase Power Design - TUF Components (Alloy choke

Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Radar 2 Safe & Stable! Guardian Angel : - TUF ESD Guards 2 - TUF LANGuard ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Onboard Button : Power - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Turbo LAN Remote Entertainment - Media Streamer ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector AURA: RGB Lighting Control
