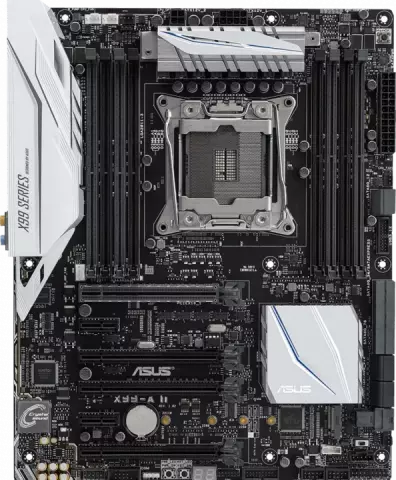

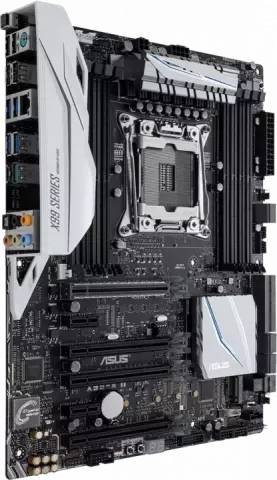

مادربرد Asus DDR4 مدل X99-A II

LGA2011-v3

Intel X99

Intel® Processors Intel® Core™ i7 X-Series Processors on LGA 2011-3 Socket Supports Intel® 14 nm CPU

DDR4

DDR4 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Quad channel memory architecture

Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology

1 x M.2 x4 Socket 3

1 x SATA Express port

Support Raid 0

1

5

10

Intel® I218V

1 x Gigabit LAN Controller(s)

Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

40-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16 or x16/x16

x8/x16/x8) 28-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16

x16/x8

x8/x8/x8) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 (x1 mode) 1 x U.2 port

2 x USB 3.1 ()Type-A + Type-C

ATX

Intel® X99 chipset : 5 x USB 3.0/2.0 port(s) (1 at back panel

blue

4 at mid-board) Intel® X99 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel

blue

4 at mid-board) ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) ( at back panel

teal blue

1 x U.2 port 1 x AAFP connector 1 x RGB Header(s) 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector:

Compatible with 2 x SATA 6.0 Gb/s ports 1 x M

5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo Core App ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protec
