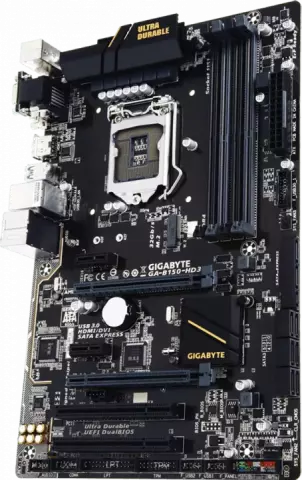

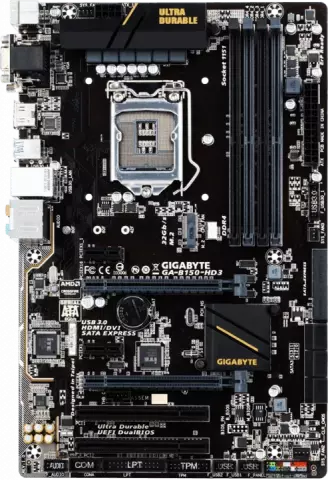

مادربرد Gigabyte DDR4 مدل B150-HD3

LGA1151

Intel B150

Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

DDR4

DDR4 2133 MHz

Dual channel memory architecture Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

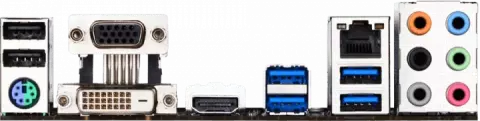

1× D-Sub / 1× DVI-D / 1× HDMI

Integrated Graphics Processor- Intel® HD Graphics

D-Sub port

supporting a maximum resolution of 1920x1200@60 Hz DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@24 Hz

Support for 2-Way AMD CrossFire™ technology

1 x M.2 Socket 3 connector

1 x SATA Express connector

2 x PCI Express x1 slots

1

ATX

6 x USB 3.0/2.0 ports (4 ports on the back panel

2 ports available through the internal USB headers) 6 x USB 2.0/1.1 ports (2 ports on the back panel

4 ports available through the internal USB headers)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Support for APP Center Support for Q-Flash Support for Smart Switch Support for Xpress Install
