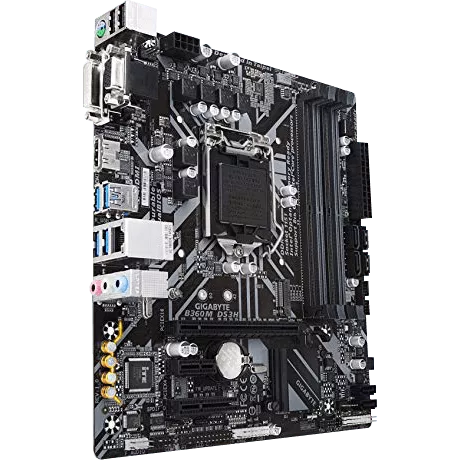

مادربرد Gigabyte DDR4 مدل B360M DS3H

LGA1151

Intel B360

8th Generation Intel Core i7/Core i5/Core i3/Pentium/Intel Celeron processors

DDR4

2666/2400/2133MHz

Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

HDMI/DVI-D/D-Sub ports

D-Sub port

supporting a maximum resolution of 1920x1200@60 Hz DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@30 Hz

1x M.2 connector (Socket 3

M key

type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

Realtek ALC887 codec

Realtek GbE LAN chip (10/100/1000 Mbit)

1x PCI Express x4 slot

1x DVI-D

microATX

1x USB 3.1 Gen 1 header 2x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Support for APP Center Support for Q-Flash Support for Xpress Install
