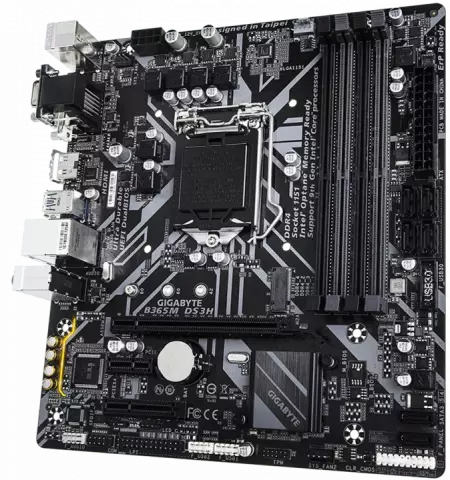

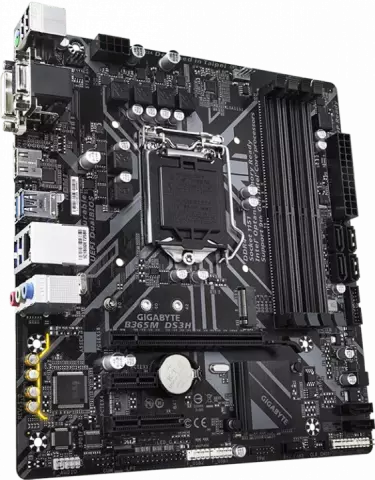

مادربرد GIGABYTE مدل B365M DS3H REV1.0

LGA1151

Intel B365

9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU

DDR4

2666/2400/2133 MHz

دو کاناله

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

D-Sub/DVI-D/HDMI

D-Sub port

supporting a maximum resolution of 1920x1200@60 Hz DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@30 Hz

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

RAID 0, 1, 5, 10

Realtek ALC887 codec

2 کانال

4 کانال

5.1 کانال

Realtek GbE LAN chip (10/100/1000 Mbit)

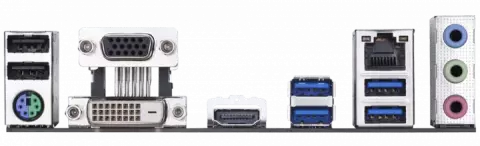

1x DVI-D

4 × USB 3.1 Gen1

2 × USB 2.0

ATX

6 x USB 3.1 Gen 1 ports (4 ports on the back panel

2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel

4 ports available through the internal USB headers)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
