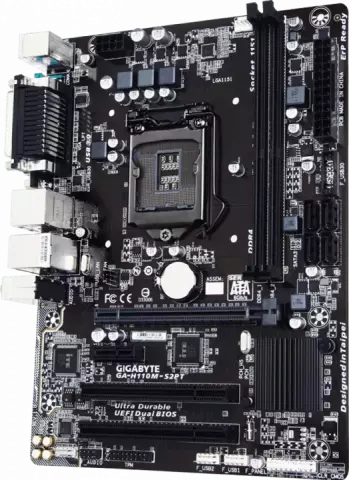

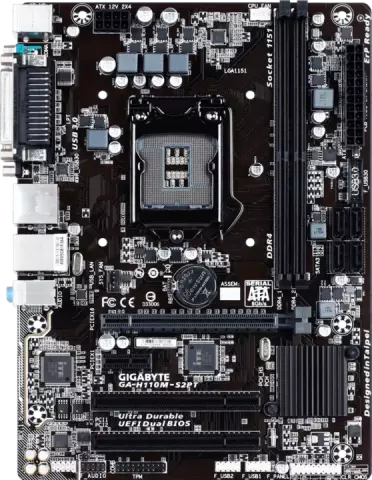

مادربرد Gigabyte DDR4 مدل GA-H110M-S2PT

LGA1151

Intel H110

Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors

DDR4

2400/2133 MHz

Dual channel memory architecture Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

D-Sub

1 x D-Sub port

supporting a maximum resolution of 1920x1200@60 Hz

Realtek GbE LAN chip (10/100/1000 Mbit)

Realtek ALC887 Codec

1 x PCI Express x16 slot

running at x16 1 x PCI Express x1 slot

microATX

1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper

Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications 3D OSD BIOS AutoGreen Cloud Station EasyTune Fast Boot ON/OFF Charge Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install Support for Smart Switch
