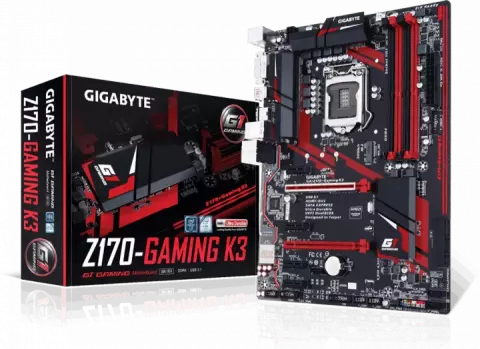

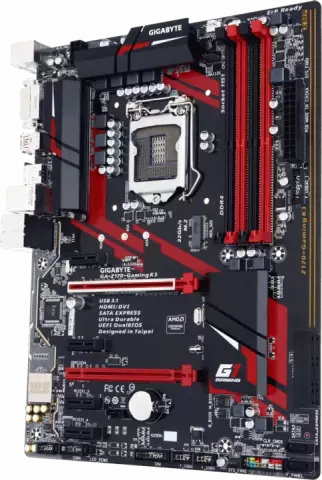

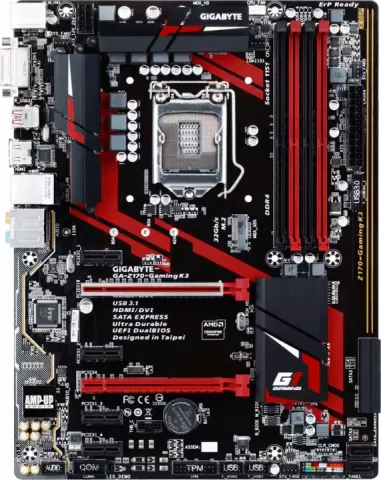

مادربرد GIGABYTE مدل GA-Z170-GAMING K3 REV 1.0

LGA1151

Intel Z170

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

DDR4

DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Dual channel memory architecture

1 x DVI-D / 1 x HDMI

Integrated Graphics Processor-Intel® HD Graphics support

1 x DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port

supporting a maximum resolution of 4096x2160@24 Hz

Support for 2-Way AMD CrossFire™ technology

1 x M.2 connector

Support for RAID 0

RAID 1

RAID 5

and RAID 10

Killer™ E2201 LAN (10/100/1000 Mbit)

Realtek® ALC1150 codec

1

ATX

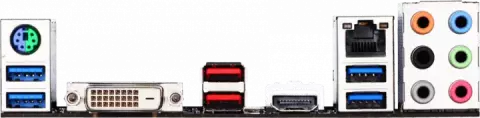

6 x USB 3.0/2.0 ports (4 ports on the back panel

2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers 2 x USB 3.1 Type-A ports (red) on the back panel

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™ add-in card connector 1 x serial port header 1 x Clear CMOS jumper

Support for APP Center Support for Q-Flash Support for Smart Switch Support for Xpress Install
