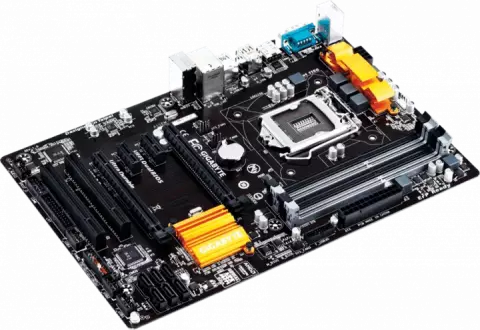

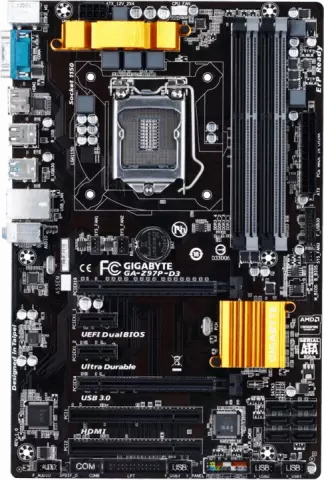

مادربرد Gigabyte DDR3 مدل GA-Z97P-D3

LGA1150

Intel Z97

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package

DDR3

DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules

Support for non-ECC memory modules Dual channel memory architecture

1 x HDMI port

Integrated Graphics Processor - Intel® HD Graphics support:

1 x HDMI port

supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz

Support for 2-Way AMD CrossFire™ technology

Support for RAID 0

RAID 1

RAID 5

and RAID 10

Realtek® GbE LAN chip (10/100/1000 Mbit)

Realtek® ALC887 Codec

ATX

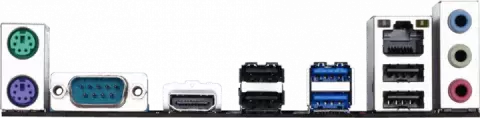

4 x USB 3.0/2.0 ports (2 ports on the back panel

2 ports available through the internal USB header) 10 x USB 2.0/1.1 ports (4 ports on the back panel

6 ports available through the internal USB headers)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 6 x SATA 6Gb/s connectors 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Support for APP Center Support for Q-Flash Support for Smart Switch Support for Xpress Install
