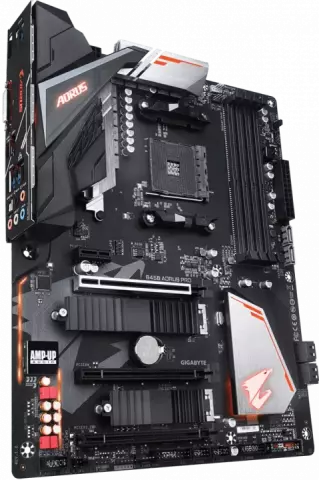

مادربرد Gigabyte DDR4 مدل GAMING B450 AORUS PRO REV1.0

AM4

AMD B450

AMD Ryze 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors

DDR4

3200(O.C.)/2933/2667/2400/2133 MHz

Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

DVI-D/HDMI

DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@60 Hz

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3

M key

type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)

Support Raid 0

1

10

Intel GbE LAN chip (10/100/1000 Mbit)

Realtek ALC1220-VB codec

1 x PCI Express x16 slot

running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1)

DVI-D

ATX

1 x USB Type-C port on the back panel

with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin

for the GC-TPM2.0 module only) 1 x Clear CMOS jumper

Support for APP Center 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
