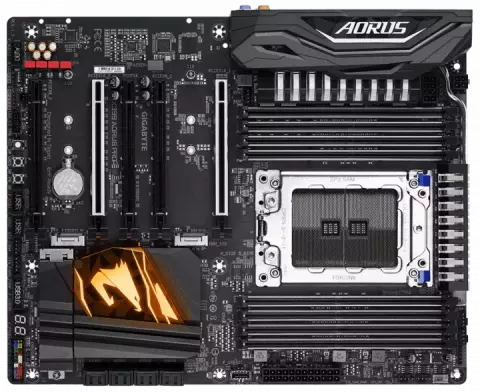

مادربرد Gigabyte DDR4 مدل GAMING X399 AORUS PRO REV1.0

STR4

AMD X399

AMD Ryzen Threadripper processor

DDR4

3600+*(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2800(O.C)/ 2667/ 2400/ 2133 MHz

Quad channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for NVIDIA® Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA® SLI technologies

Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies

2 x M.2 connectors (Socket 3

M key

type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G) (M2Q_32G) 1 x M.2 connector (Socket 3

M key

type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)

Support Raid 0

1

10

Intel GbE LAN chip (10/100/1000 Mbit)

Realtek ALC1220 Codec

ATX

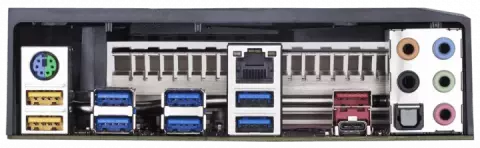

1 x USB Type-C™ port on the back panel

with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.1 Gen 1 support

available through the internal USB header 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x addressable LED strip header 1 x addressable LED strip power select jumper 2 x RGB (RGBW) LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers 1 x Clear CMOS jumper

Support for APP Center 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer Smart Survey USB Blocker USB DAC-UP 2 Support for Q-Flash Support for Xpress Install
