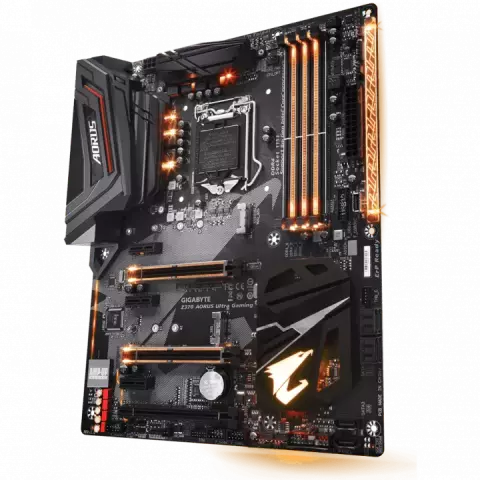

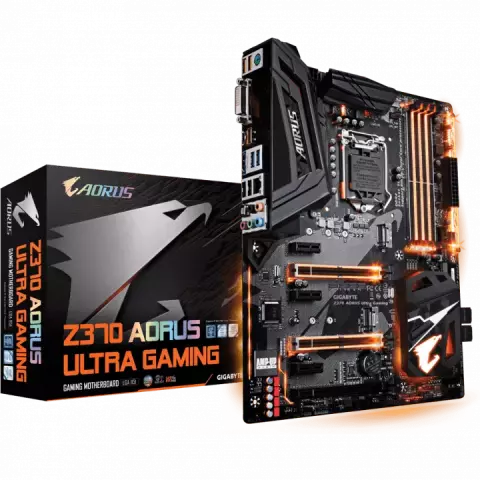

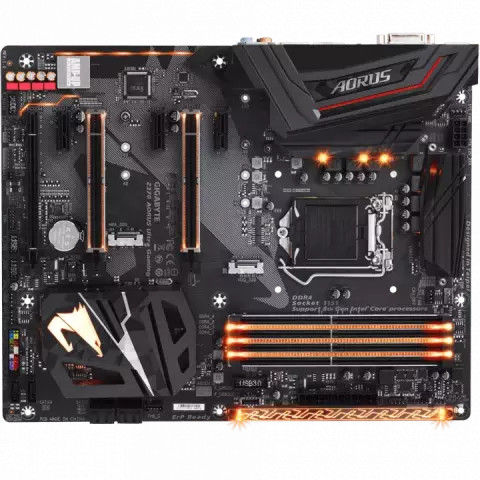

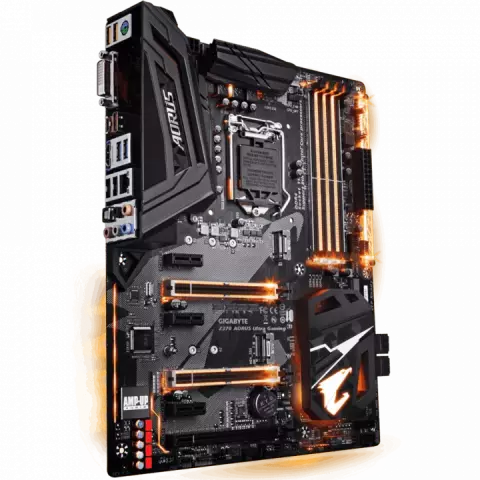

مادربرد Gigabyte DDR4 مدل GAMING Z370 AORUS ULTRA

LGA1151

Intel Z370

8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors

DDR4

Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

DVI-D / HDMI

DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@30 Hz

Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies

Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies

1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G) 1 x M.2 connector (Socket 3

M key

type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)

Raid 0

1

5

10

Intel GbE LAN chip (10/100/1000 Mbit)

Realtek ALC1220 Codec

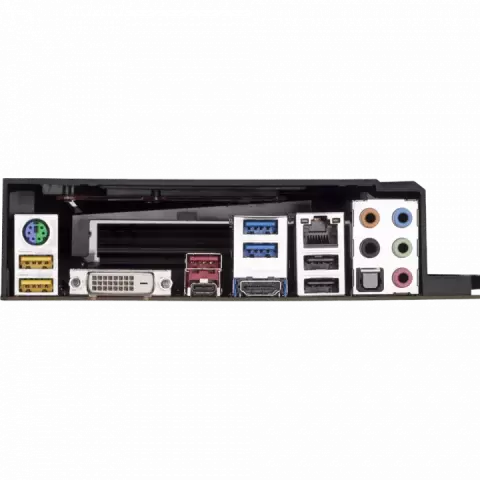

1 x DVI-D

ATX

1 x USB Type-C™ port

with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner Support for Q-Flash Support for Xpress Install
