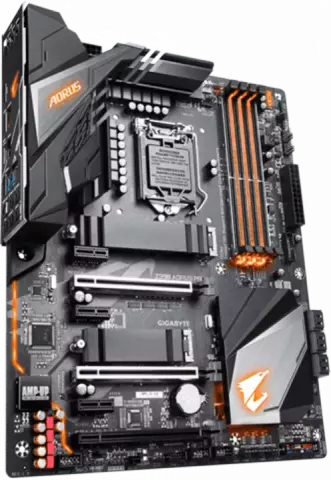

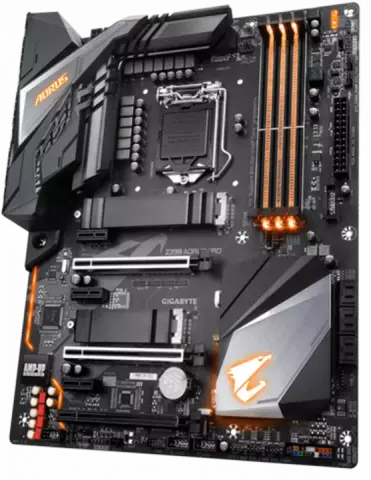

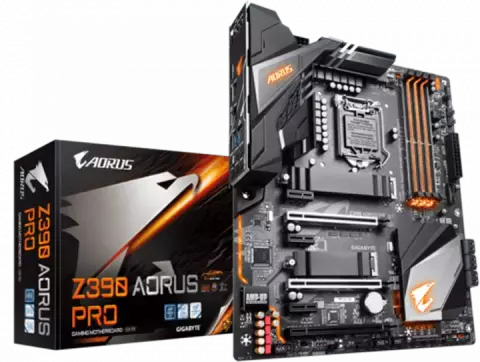

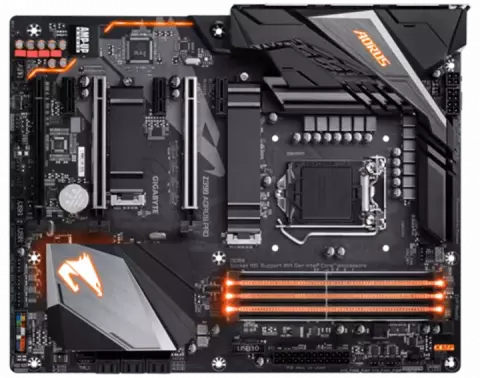

مادربرد GIGABYTE مدل GAMING Z390 AORUS PRO (REV 1.0)

LGA1151

Intel Z390

DDR4

DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

HDMI

Support for NVIDIAQuad-GPU SLI and 2-Way NVIDIA SLI technologies

Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies

1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3

M key

type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)

Raid 0

1

5

10

Support Intel Optane Memory Ready

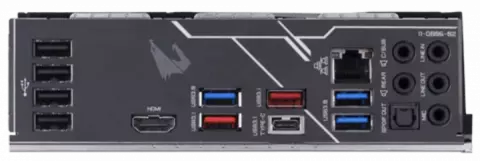

1 × USB Type-C Gen2

4 × USB 2.0

2 × USB 3.1 Gen2

3 × USB 3.1 Gen1

ATX

1 x USB Type-C™ port

with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers
