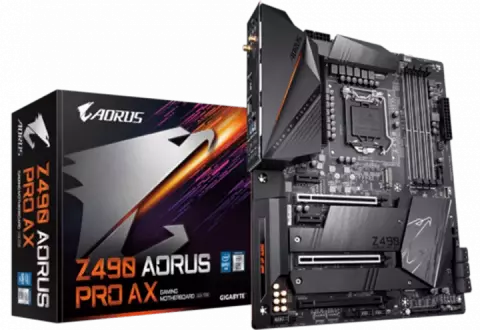

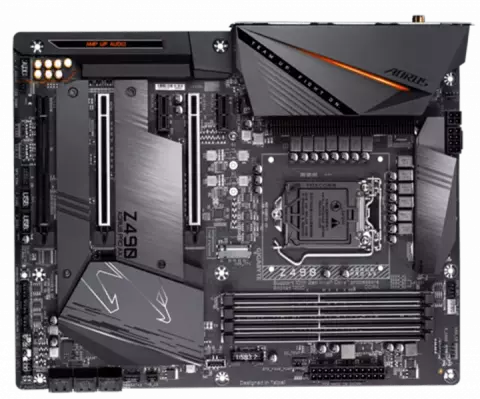

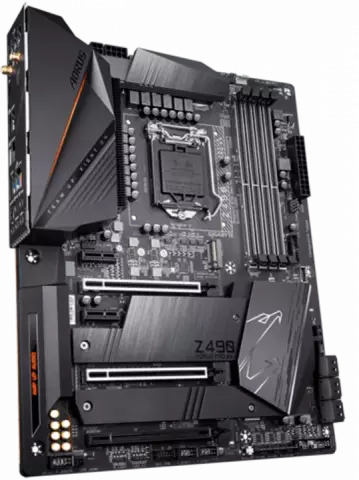

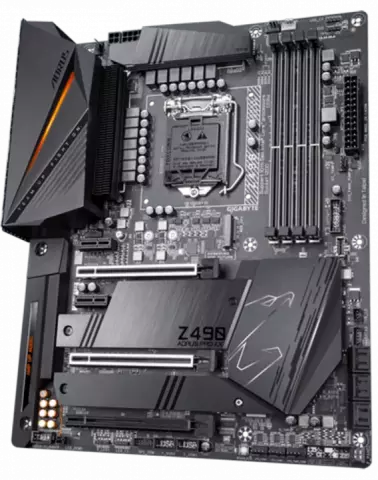

مادربرد Gigabyte مدل Gaming Z490 AORUS PRO AX (rev. 1.1)

LGA1200

Intel Z490

سری Pentium، سری Celeron، نسل دهم Intel

DDR4

پردازنده های Intel Core i9/i7 : 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz پردازنده های Intel Core i5/i3/Pentium/Celeron : 2666/2400/2133 MHz

دو کاناله

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

HDMI

رزولوشن HDMI : 4096x2160 با فرکانس 30 هرتز

Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

2 عدد

2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB)

RAID 0, 1, 5, and 10

Realtek ALC1220-VB CODEC

2 کانال

4 کانال

5.1 کانال

7.1 کانال

Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel Wi-Fi 6 AX201

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

v5.1

1 × USB Type-C Gen2

2 × USB 3.2 Gen2

4 × USB 2.0

3 × USB 3.2 Gen1

ATX

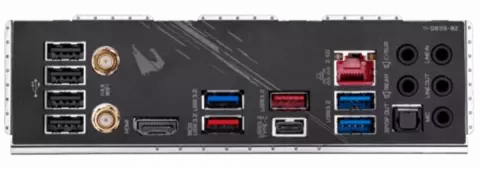

1x USB Type-C port on the back panel

with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 1 support

available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel

2 ports available through the internal USB header)
