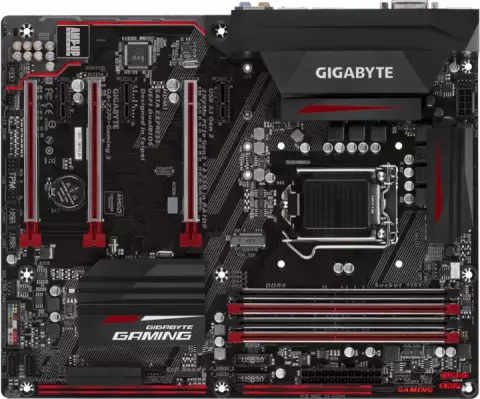

مادربرد Gigabyte DDR4 مدل GAMING3 Z270

LGA1151

Intel Z270

7th and 6th generation Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/Intel Celeron processors in the LGA1151 package

DDR4

Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Dual channel memory architecture

HDMI / DVI-D

Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies (PCIEX16 and PCIEX4_1)

1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

2 x SATA Express connectors

Support for RAID 0

RAID 1

RAID 5

and RAID 10

Killer E2500 LAN chip (10/100/1000 Mbit)

Realtek ALC1220 Codec

1

4 x USB 3.1 Gen 1 ports

ATX

2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper

*Support for APP Center (3D OSD-@BIOS-Ambient LED-AutoGreen-BIOS Setup-Color Temperature-Cloud Station-EasyTune-Easy RAID-Fast Boot-Game Boost-ON/OFF Charge-Platform Power Management-Smart Backup-Smart Keyboard-Smart TimeLock-System Information Viewer-USB Blocker-USB DAC-UP 2-V-Tuner) *Support for 3TB+ Unlock. *Support for Q-Flash. *Support for Xpress Install.
