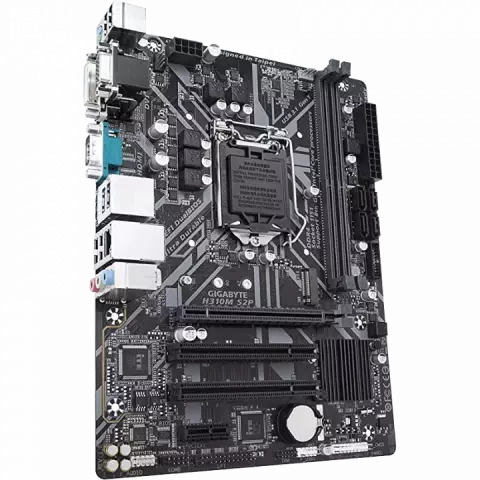

مادربرد Gigabyte DDR4 مدل H310M S2P

LGA1151 v2

Intel H310

Support for 8th Generation Intel Core i7 processors/Core i5/Core i3/Pentium/Celeron processors

DDR4

2666/2400/2133MHz

Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

HDMI/DVI-D/D-Sub ports

D-Sub port

supporting a maximum resolution of 1920x1200@60 Hz DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@30 Hz

1x M.2 connector (Socket 3

M key

type 2242/2260/2280 SATA and PCIe x2 SSD support)

Realtek GbE LAN chip (10/100/1000 Mbit)

Realtek ALC887 Codec

1 x PCI Express x1 slot

1x DVI-D

microATX

1x USB 3.1 Gen 1 header 1x USB 2.0/1.1 header

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 Socket 3 connector 1x CPU fan header 1x system fan header 1x front panel header 1x front panel audio header 1x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1x serial port header 1x parallel port header 1x Clear CMOS jumper

Support for APP Center Support for Q-Flash Support for Xpress Install
