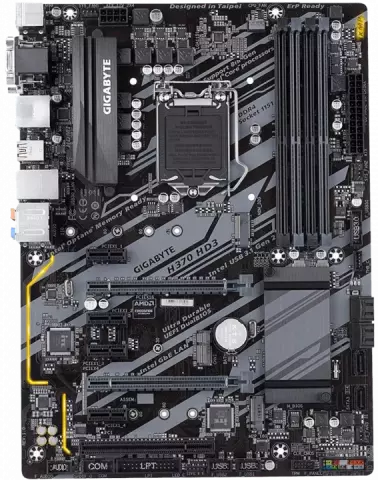

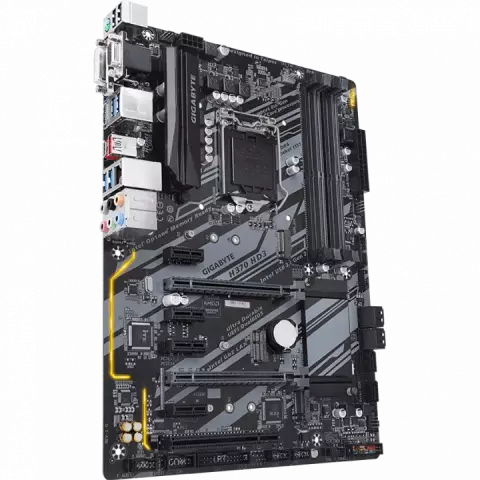

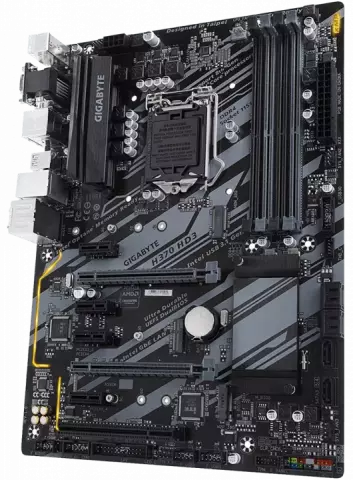

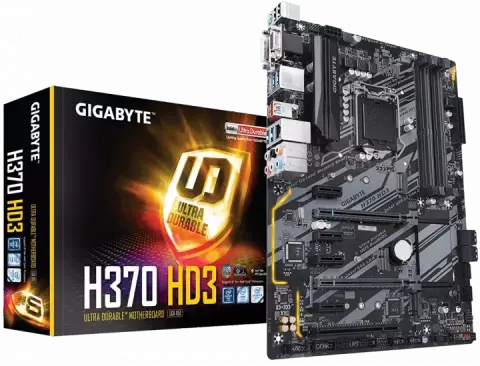

مادربرد Gigabyte DDR4 مدل H370 HD3

LGA1151

Intel H370

8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors

DDR4

2666/2400/2133MHz

Dual channel memory architecture ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

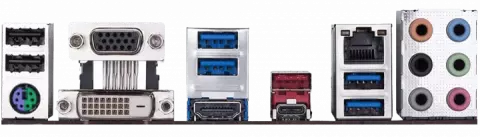

HDMI/DVI-D/D-sub

D-Sub port

supporting a maximum resolution of 1920x1200@60 Hz DVI-D port

supporting a maximum resolution of 1920x1200@60 Hz HDMI port

supporting a maximum resolution of 4096x2160@30 Hz

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI) 1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G) 1 x M.2 connector (Socket 3

M key

type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)

Support Raid 0

1

5

10

Intel GbE LAN chip (10/100/1000 Mbit)

Realtek ALC887 Codec

1 x PCI Express x16 slot

running at x16 (PCIEX16) 1 x PCI Express x16 slot

running at x4 (PCIEX4)

1x DVI-D

ATX

1x USB 3.1 Gen 1 header 2x USB 2.0/1.1 headers

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 3x system fan headers 1x RGB LED strip header 6x SATA 6Gb/s connectors 2x M.2 Socket 3 connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x Thunderbolt™ add-in card connector 1x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1x parallel port header 1x serial port header 1x Clear CMOS jumper

Support for APP Center Support for Q-Flash Support for Xpress Install
