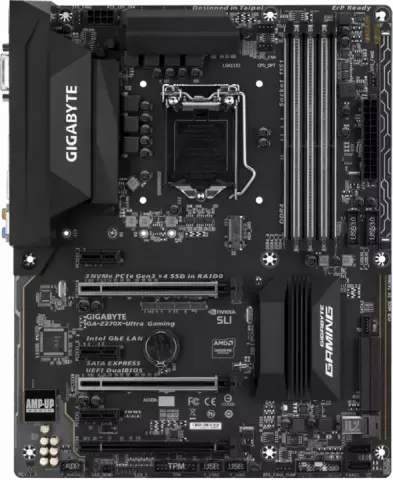

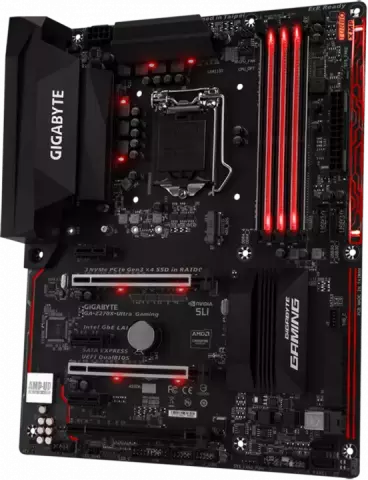

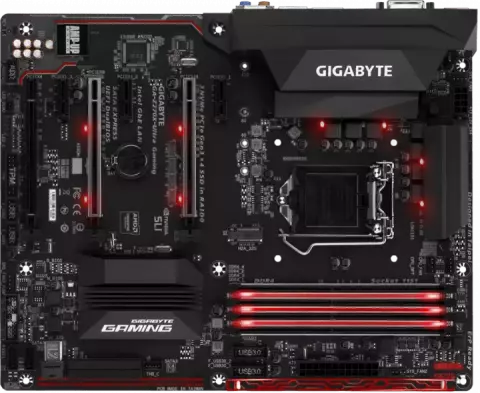

مادربرد Gigabyte DDR4 مدل ULTRA GAMING Z270X REV 1.0

LGA1151

Intel Z270

Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron

DDR4

3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz

Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

HDMI / DVI-D

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies

1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

2 x SATA Express connectors

Support for RAID 0

RAID 1

RAID 5

and RAID 10

Intel® GbE LAN chip (10/100/1000 Mbit)

Realtek® ALC1220 Codec

1 x PCI Express x16 slot

running at x16 (PCIEX16) 1 x PCI Express x16 slot

running at x8 (PCIEX8) 1 x PCI Express x16 slot

running at x4 (PCIEX4) 3 x PCI Express x1 slots

1

ATX

2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x U.2 connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x front panel header 1 x front panel audio header 1 x RGB (RGBW) LED strip extension cable header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt™add-in card connector 1 x Clear CMOS jumper

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner Support for 3TB+ Unlock Support for Q-Flash Support for Xpress Install
