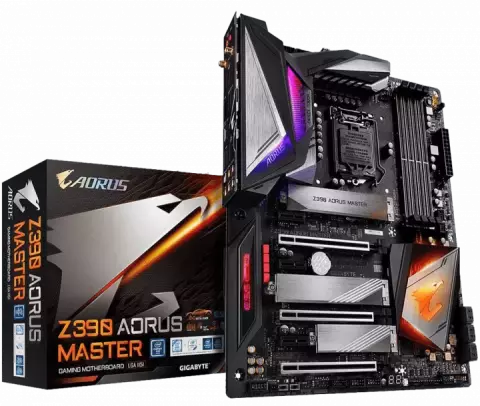

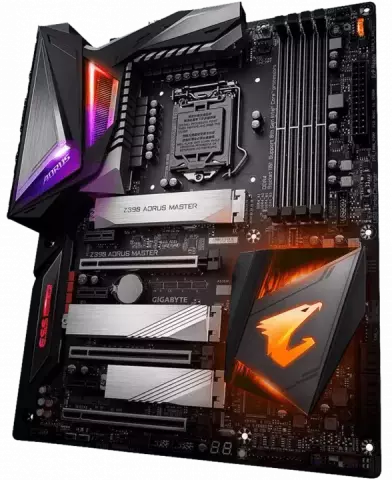

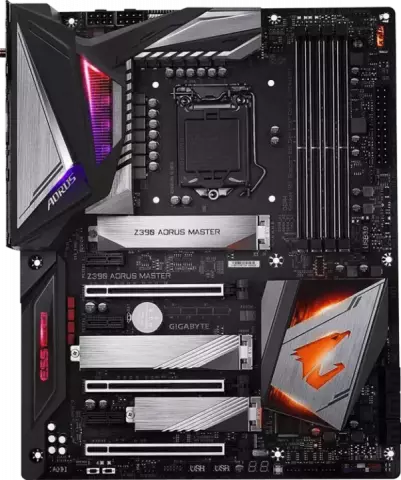

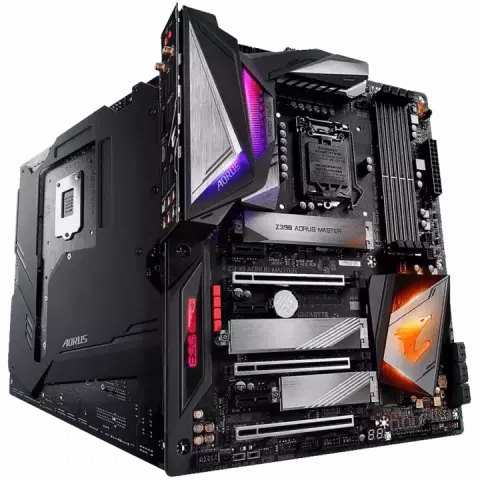

مادربرد GIGABYTE مدل Z390 AORUS MASTER REV.1.0

LGA1151 v2

Intel Z390

9th and 8th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU

DDR4

4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

HDMI port

supporting a maximum resolution of 4096x2160@30 Hz

Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies

Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies

1 x M.2 Socket 1 connector for an Intel CNVi wireless module (CNVI)

Raid 0

1

5

10

Intel GbE LAN chip (10/100/1000 Mbit)

Realtek ALC1220-VB codec

Support Intel Optane Memory Ready

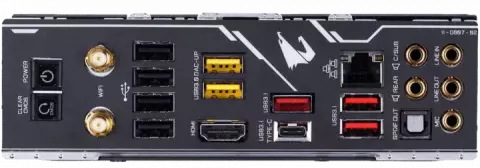

1 × USB Type-C Gen2

4 × USB 2.0

3 × USB 3.1 Gen2

2 × USB 3.1 Gen1

1 x Power/Reset button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R)

ATX

1 x USB Type-C port

with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x Addressable LED strip headers 2 x Addressable LED strip power select jumpers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin

for the GC-TPM2.0_S module only) 1 x OC button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points
