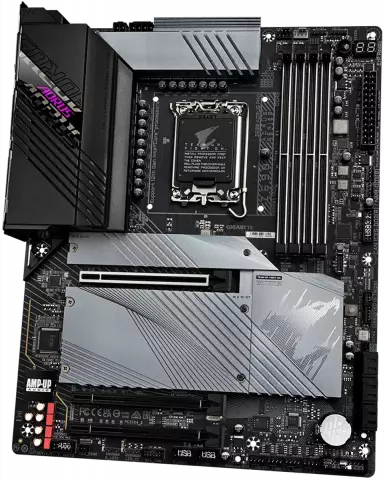

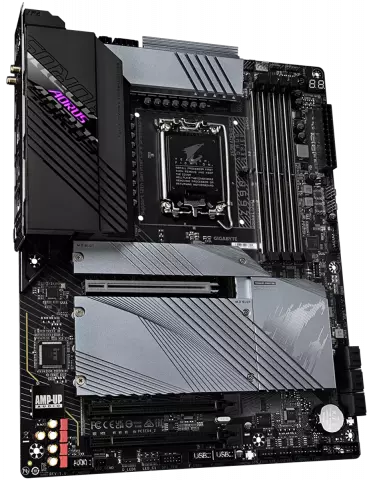

مادربرد GIGABYTE مدل Z690 AORUS PRO

LGA1700

Intel Z690

سری Core، سری Pentium Gold، سری Celeron، نسل دوازدهم Intel

19

DDR5

6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz

دو کاناله

1x DisplayPort

رزولوشن DisplayPort : 4096x2304 با فرکانس 60 هرتز

پشتیبانی از HDCP 2.3

AMD Quad-GPU CrossFire and 2-Way AMD CrossFire

1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)

2x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)

0/1/5/10

Realtek ALC4080 CODEC

High Definition Audio

7.1 کانال

Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

v5.2

1 * USB Type-C 3.2 Gen 2x2

4 × USB 3.2 Gen2

4 × USB 3.2 Gen1

4 × USB 2.0

2x SMA antenna connectors (2T2R)

ATX

1x USB Type-C header

with USB 3.2 Gen 2x2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers

1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 1x water cooling CPU fan header 2x addressable LED strip headers 2x RGB LED strip headers 1x front panel audio header 1x noise detection header 2x Thunderbolt add-in card connectors 1x Trusted Platform Module header 1x power button 1x reset button 1x Q-Flash Plus button 2x temperature sensor headers 1x reset jumper 1x Clear CMOS jumper

APP Center BIOS Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Q-Flash Plus Xpress Install
