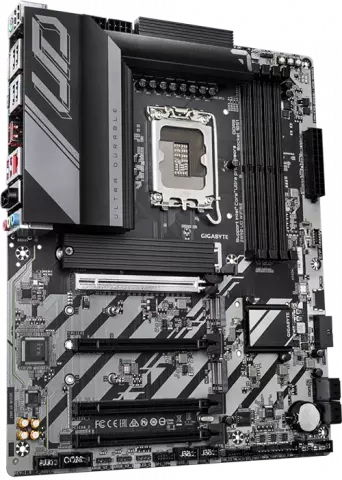

مادربرد GIGABYTE مدل Z890 UD WIFI6E

مبتنی بر Intel

LGA1851

Intel Z890

نسل دوم Intel

سری Core Ultra نسل دوم Intel

DDR5

8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

دو کاناله

1x USB4 1x DisplayPort

رزولوشن USB4: 3840x2160 با فرکانس 144 هرتز

رزولوشن DisplayPort: 3840x2160 با فرکانس 144 هرتز

1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

RAID 0, RAID 1, RAID 5, and RAID 10

Realtek® Audio CODEC

High Definition Audio

2 کانال

4 کانال

5.1 کانال

7.1 کانال

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 6E

v5.3

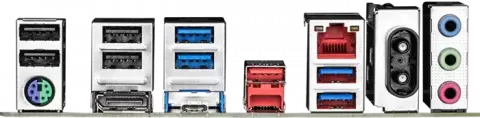

4 × USB 2.0

4 × USB 3.2 Gen1

USB 4.0 Type-c x 1

1 × USB 3.2 Gen2

2x SMA antenna connectors (2T2R)

ATX

1 x USB Type-C® header

with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Support for Windows 11 64-bit
