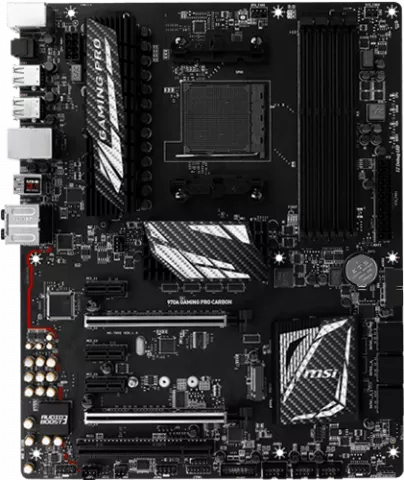

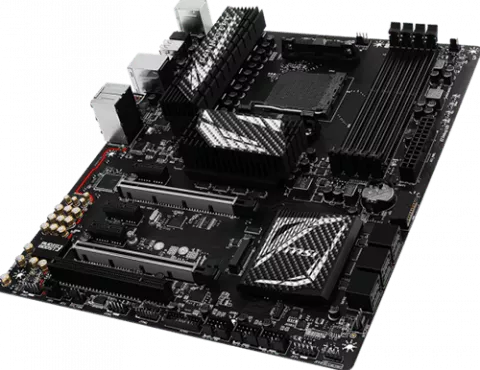

مادربرد MSI DDR3 مدل GAMING PRO CARBON 970َA

AM3+

AMD 970/SB950

Supports AMD® FX™/ Phenom™/ Athlon™II/ Sempron™ processors for Socket AM3/ AM3+

DDR3

- Supports DDR3 1066/ 1333/ 1600/ 1866/ 2133(OC) MHz

Dual channel memory architecture

Supports 2-Way AMD® CrossFire™ Technology Supports 2-Way NVIDIA® SLI™ Technology

Supports 2-Way NVIDIA® SLI™ Technology

Supports 2-Way AMD® CrossFire™ Technology

1 x Intel I211-AT Gigabit LAN controller

Realtek® ALC1150 codec

ATX

• ASMedia® ASM1143 Chipset - 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel) • ASMedia® ASM1143 Chipset - 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors • AMD® SB950 Chipset - 14 x USB 2.0 (High-speed USB) ports (8 ports on the back panel

6 ports available through the internal USB connector)

- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports) - 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 2 x 4-pin system fan connectors - 2 x 3-pin system fan connectors - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x S/PDIF OUT connector - 1 x RGB LED connector - 1 x Clear CMOS jumper
